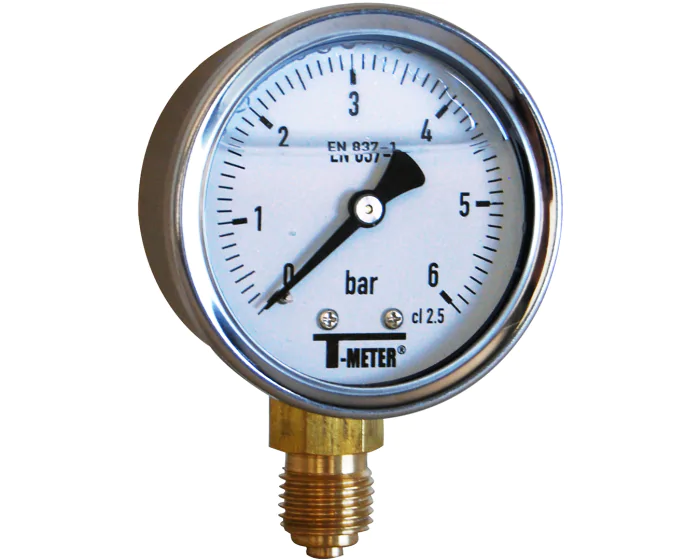

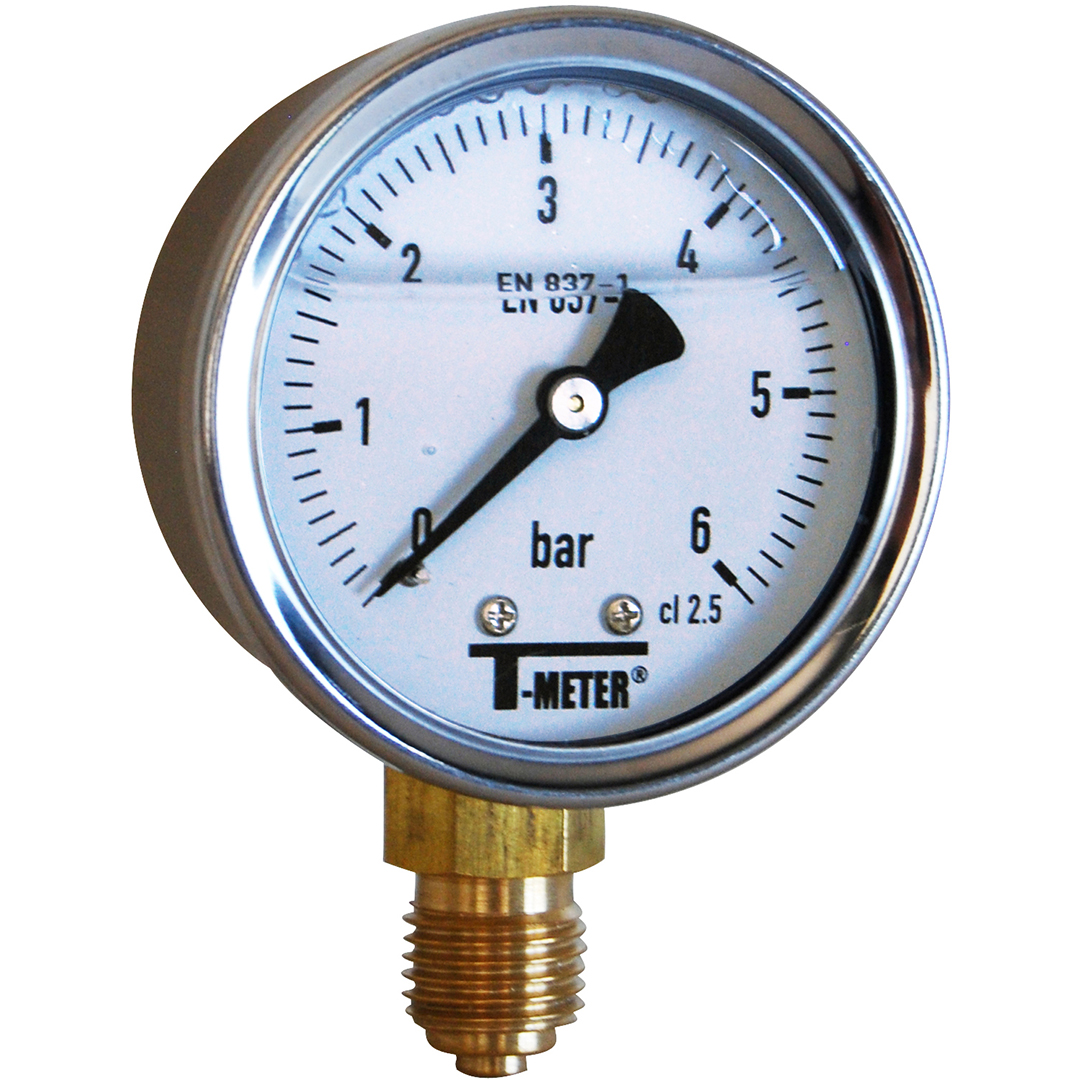

Sferaco offers the 1612 stainless steel pressure gauge, diameter 50, with 1/4'' BSP radial connection, range -1/+1 to 0/60 bar, brass connection, with glycerine, class 2.5, IP65 protection for shipbuilding and compressors
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Construction standard | EN 837-1 |
| Brand | T-METER |
| Pressure range | -1 / 1 Bar |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| Dial diameter (mm) | 50 |
| Fluid | Cold water |
| Protection index (IP) | IP 65 |
| Housing material | Stainless steel |
| Connections | BSP M |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Pressure gauge type | Glycerine pressure gauge |
| Warranty period | 2 years |
| Pressure gauge connection | Radial |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP M -1 / 1 Bar | 1612001 | S1013517 |
€5.76
(excl. btw)
|
add to cart |
| BSP M 0 / 1.6 Bar | 1612002 | S1013518 |
€5.76
(excl. btw)
|
add to cart |
| BSP M 0 / 2.5 Bar | 1612003 | S1013519 |
€5.76
(excl. btw)
|
add to cart |
| BSP M 0 / 4 Bar | 1612004 | S1013520 |
€5.76
(excl. btw)
|
add to cart |
| BSP M 0 / 6 Bar | 1612005 | S1013521 |
€5.76
(excl. btw)
|
add to cart |
| BSP M 0 / 10 Bar | 1612006 | S1013522 |
€5.76
(excl. btw)
|
add to cart |
| BSP M 0 / 16 Bar | 1612007 | S1013523 |
€5.76
(excl. btw)
|
add to cart |
| BSP M 0 / 25 Bar | 1612008 | S1013524 |
€5.76
(excl. btw)
|
add to cart |
| BSP M 0 / 40 Bar | 1612009 | S1013525 |
€5.76
(excl. btw)
|
add to cart |
| BSP M 0 / 60 Bar | 1612010 | S1013526 |
€5.76
(excl. btw)
|
add to cart |
